Galvanized Iron Wire Anti Insect & Mosquito Mesh Window Screen Net

Material: Low carbon Steel Iron Wire Surface: Galvanized, Stainless steel, Aluminum or as request Size: General specifications or as customer's requirement. Application: Window & door mesh screens Certificate: ISO, SGS. Origin: China.

CONTACT NOWPDF DOWNLOAD

Product Details

Product Tags

Introduction

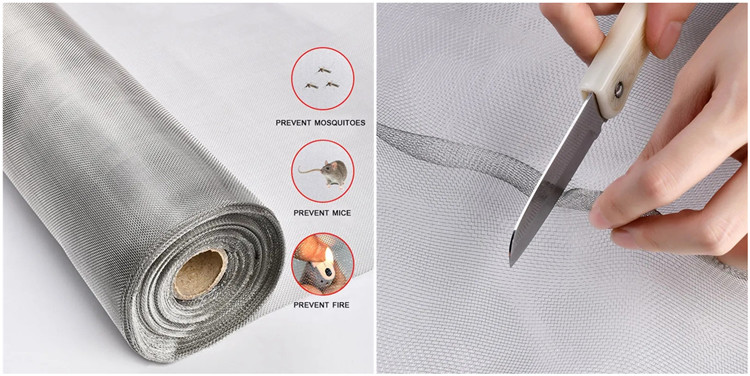

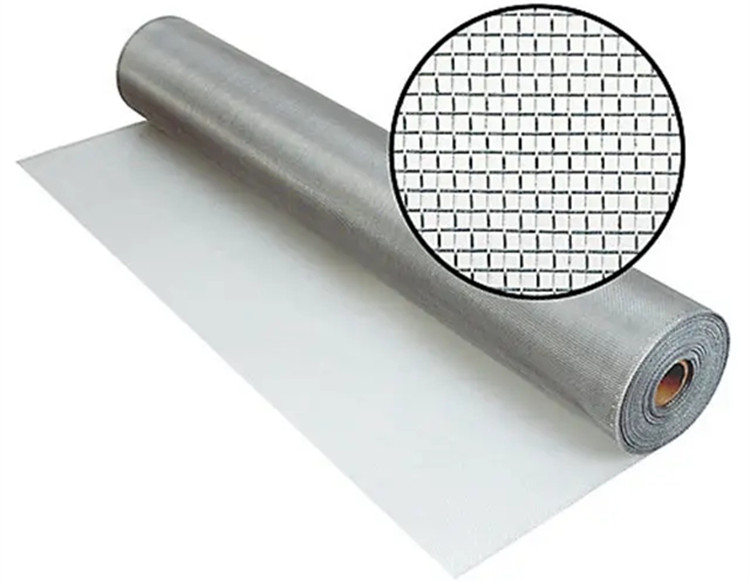

Galvanized window screen is also called galvanized insect screen. It is one of the most popular and most economical kinds of insect screens. The material of the galvanized window screen is low carbon steel with plain weaving and it can be galvanized before weaving or after weaving. Galvanized window screen have white zinc plating and blue-white zinc plating, acid and alkali resistance , corrosion resistance, good toughness, high temperature resistant.

Specification

1. Materials: low carbon iron wire(Galvanized wire)

2. Weave Style: Plain weaving. Galvanized before weaving and galvanized after weaving.

3. Mesh Counts per inch:12x12,13x13,14x14,16x16,,18x18,18x16,18x14,20x20,22x22,24x24,30x30mesh.

4. Roll size: width :0.6m,0,8m,1.2m,1,4m,1.8m,2.2m,etc. Length: 30cm, 90cm,100cm,30m,100m,200m,etc.

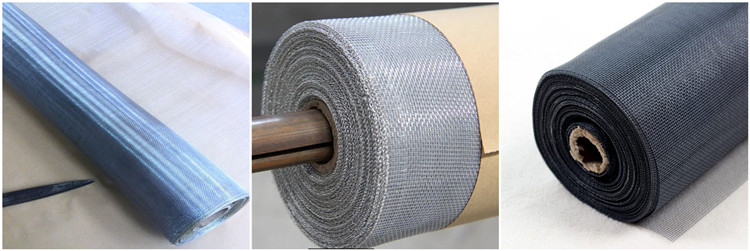

5. Assortments:

1) Electro galvanized iron wire mosquito window screen

2) Hot dipped galvanized iron wire mosquito mesh window screen

3) Aluminum painted wire mesh window screen

4) Enameled steel mosquito window screen mesh

Gauge	Mesh Counts/Inch	Roll Size	Technical Notes
BWG 31, BWG 32, BWG 33, BWG 34.	12 X 12	Width: 2' to 6' Length: 25' to 300' 3"x100" 4"x100" 1x25M 1.2x25M 1.5x25M	Type: Plain weaving. Color: White and bluish white, black Enameled.
	14 X 14
	16 X 16
	18 X 18
	22 X 22
	24 X 24
	30 X 30

6. Characteristic Of Galvanized Iron Wire Window Screen

1) Excellently weather resistance, anti aging

2) Anti-cold, anti-heat, anti-dry and moisture-resistant, flame retardant.

3) Beautiful shape, well structured

4) Restores full views without obstruction

5) Improves air flow and circulation

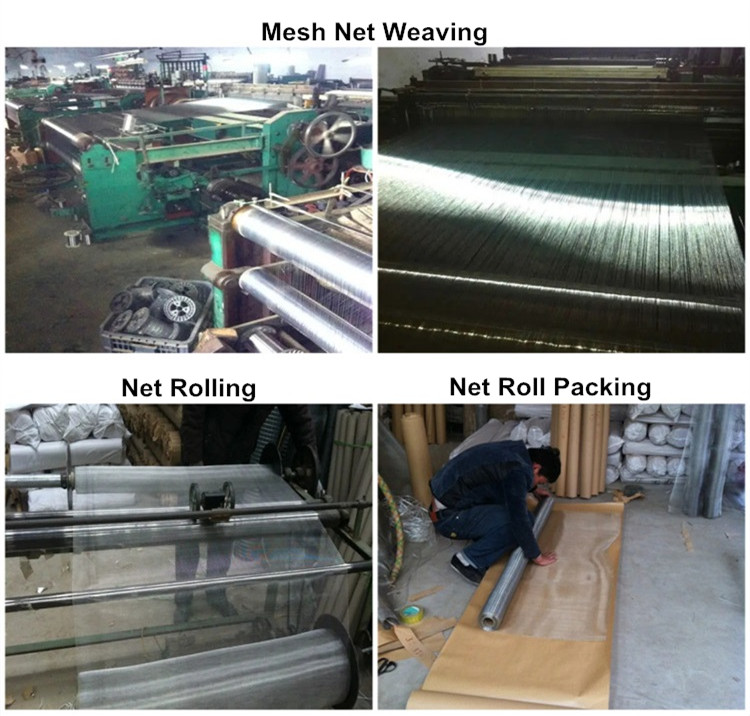

Workshop & Process

Packing & Delivery

1) Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" as well as the "woven bag" on the finished roll,

2) In roll,outside water-proof paper+plastic film, then woven bag or in

3) As per yours' special request.

Application

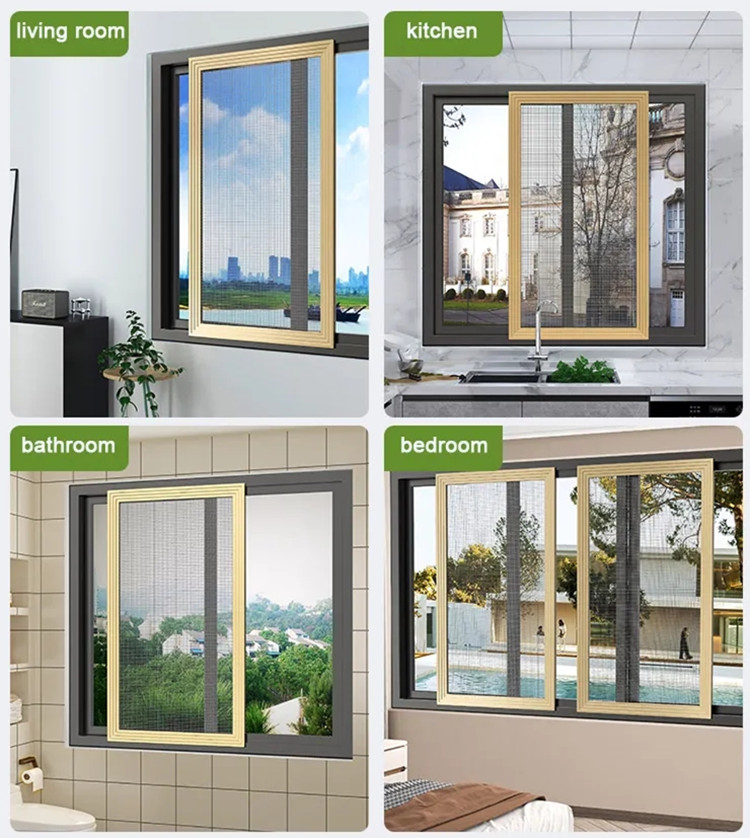

1) Galvanized iron wire mesh is widely used in window & door mesh screens, such as building, hotel, residential building to prevent mosquito and insect.
2) Stall in window or door as window screen or mosquito.
3) Used in greenhouse as anti-insect or anti trip net.
4) Used in fishing breed or poultry rasing as pool or garden guard.

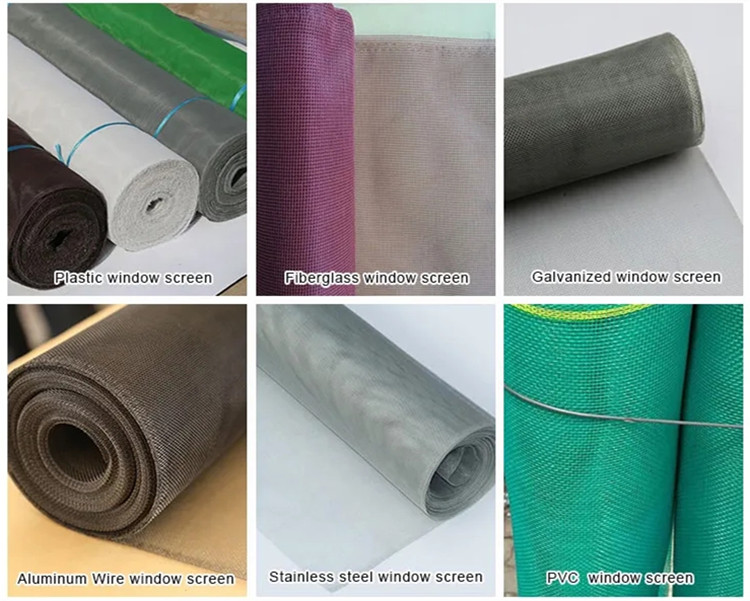

Window screens of other materials

Window screens have six different materials.

Have different characteristics:a light weight/Anti-mildew and corrosion/color washable and attractive / Stable size, good ventilation and light transmission / beautiful features to meet various needs.
