Single Loop Spiral Razor Barbed Wire Coil(Coin Type)

Material: Q195 or Q235 Size: General specifications or as customer's requirement. Surface: Stainless steel, Galvanized, PVC Coated or as request. Type: Single loop (Coin Type) Certificate: ISO, SGS Origin: China

CONTACT NOWPDF DOWNLOAD

Product Details

Product Tags

Introduction

Razor barbed wire is composed of blade and core wire. The blade is made of galvanized steel sheet or stainless steel sheet, which is punched into blade shape. And the core wire is high tension galvanized iron wire, or stainless steel wire, plastic barbed wire. Razor barbed wire is easily and expediently installation.

Single loop razor barbed wire is also called single coil razor barbed wire, no clips, installed as its natural form when it is expanding. CBT60 and CBT65 are usually used in production of single loop razor barbed wire. It is widely used in the airport, railway, highway, residential, prison, military etc as the protection fence.

Specification

1) Material: Electro galvanized/Hot-dip galvanized/Heavy hot-dip galvanized steel material wire, or Stainless steel material wire,

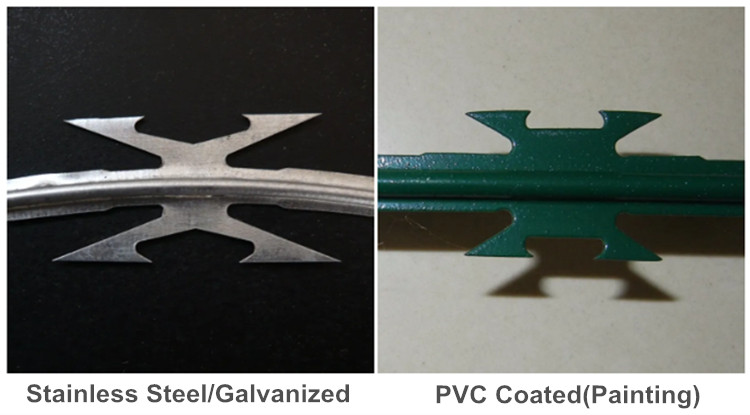

2) Surface finishing: Galvanized, stainless steel, or PVC coated
3) Blade style: BTO-10, 12, 22, 28, 30, CBT-60, 65 ect.,
4) Loop diameter: 300mm, 350mm, 450mm, 500mm, 600mm, 750mm, 800mm, 980mm, ect. or customized,
5) Cover length per roll: Normally 7m, 8m, 10m, 12m, 15m or customized.

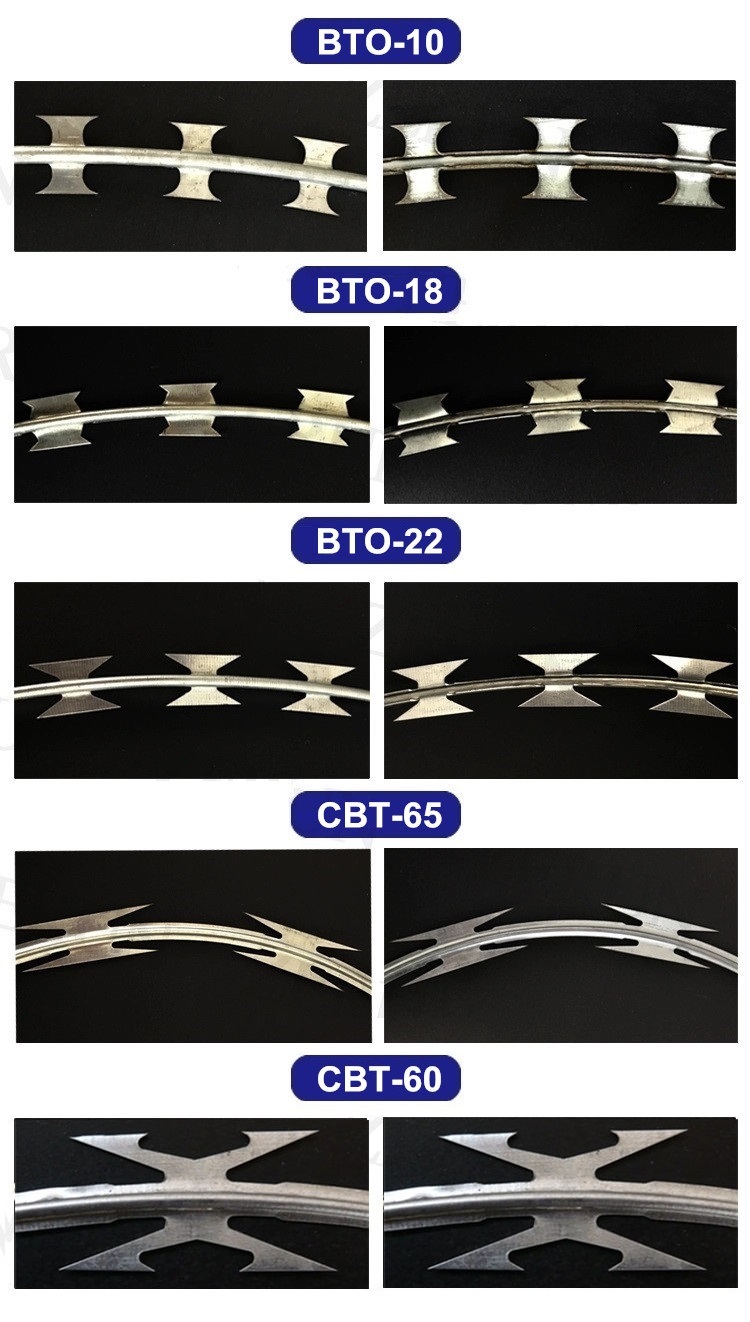

1) Normal Razor Blade Styles For Reference

Reference Number	Blade Style	Thickness	Wire Dia	Barb Length	Barb Width	Barb spacing
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5±0.1	28±1	15±1	34±1
BTO-30		0.5±0.05	2.5±0.1	30±1	18±1	34±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	96±2
CBT-65		0.6±0.05	2.5±0.1	65±2	21±1	100±2

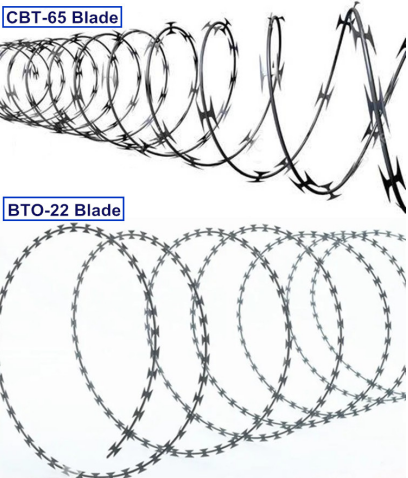

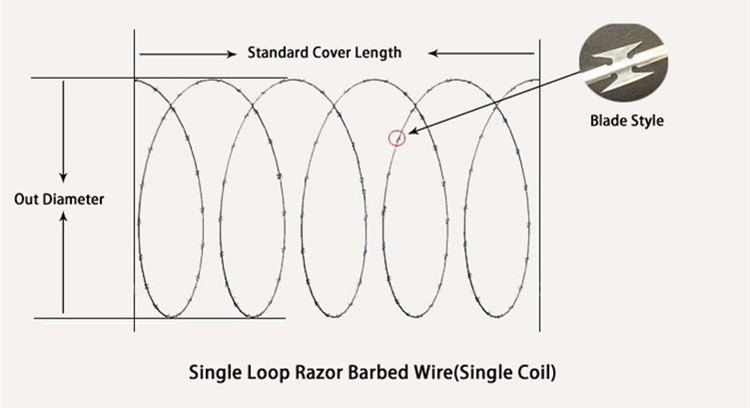

2) The Technique Data Of Single Loop Razor Barbed Wire

Loop Diameter	NO. Of Loops	Standard Cover Length	Blade Style	Remark
450mm	33	7-8M	CBT-60/65, BTO-22 or as request	Single coil
500mm	56	12-13M	CBT-60/65, BTO-22 or as request	Single coil
700mm	56	13-14M	CBT-60/65, BTO-22 or as request	Single coil
960mm	56	14-15M	CBT-60/65, BTO-22 or as request	Single coil
The customized sizes are also available.

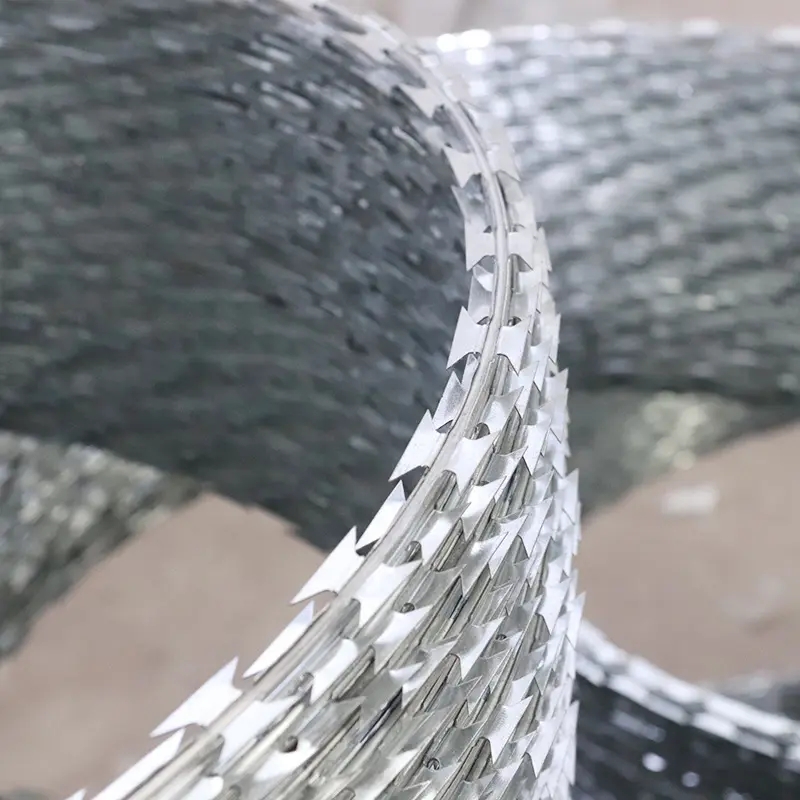

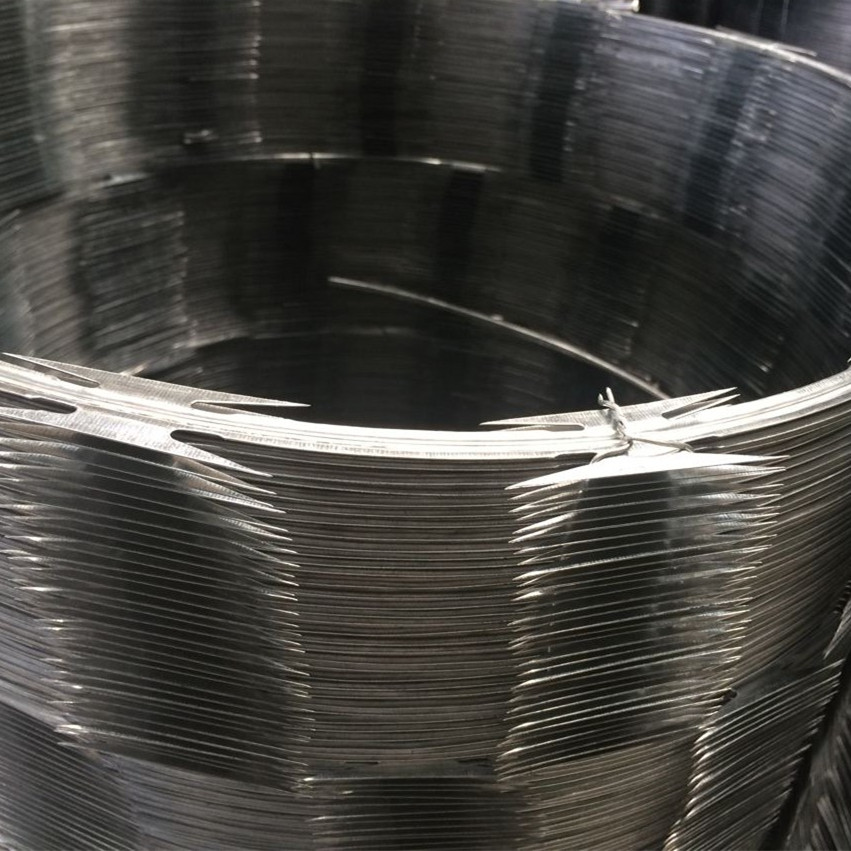

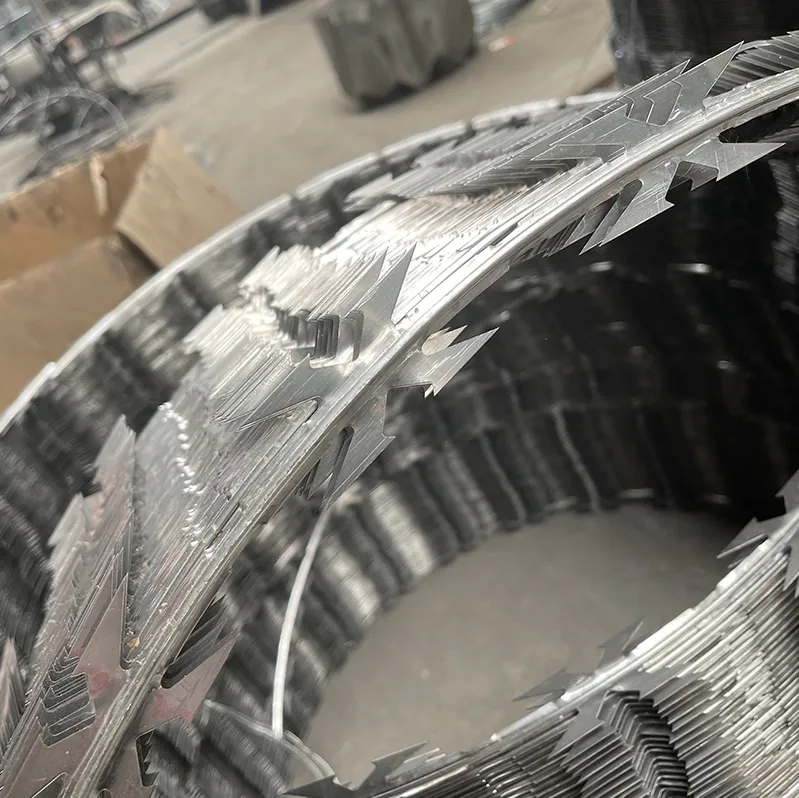

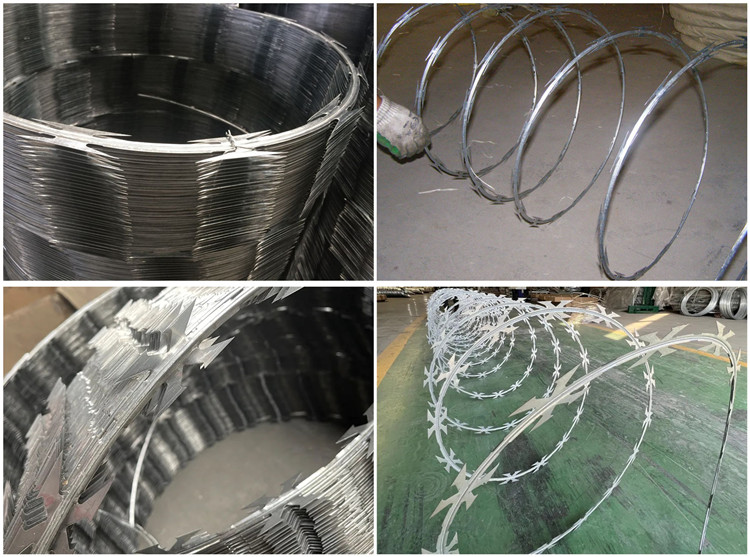

3) The Surface photo Of The Single Loop Razor Wire Coil

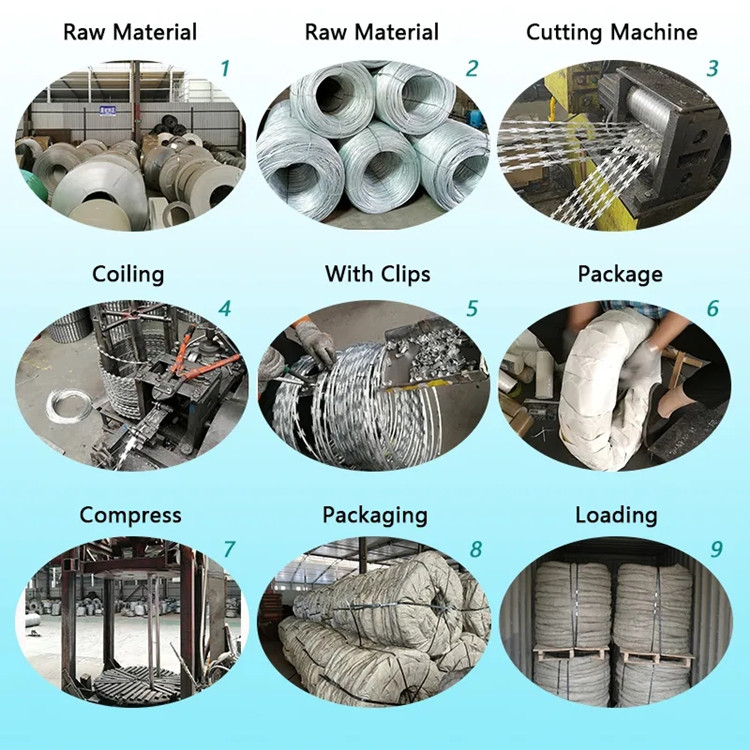

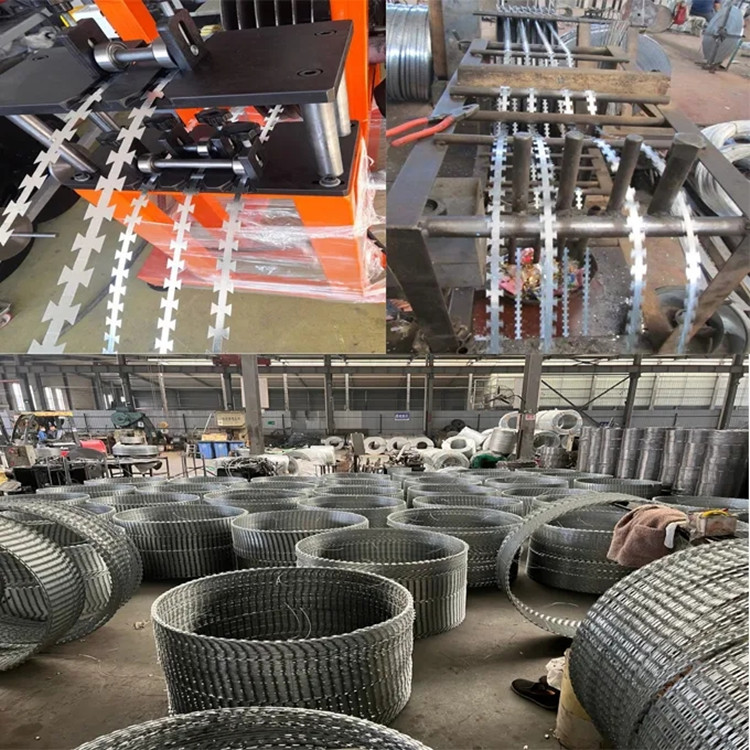

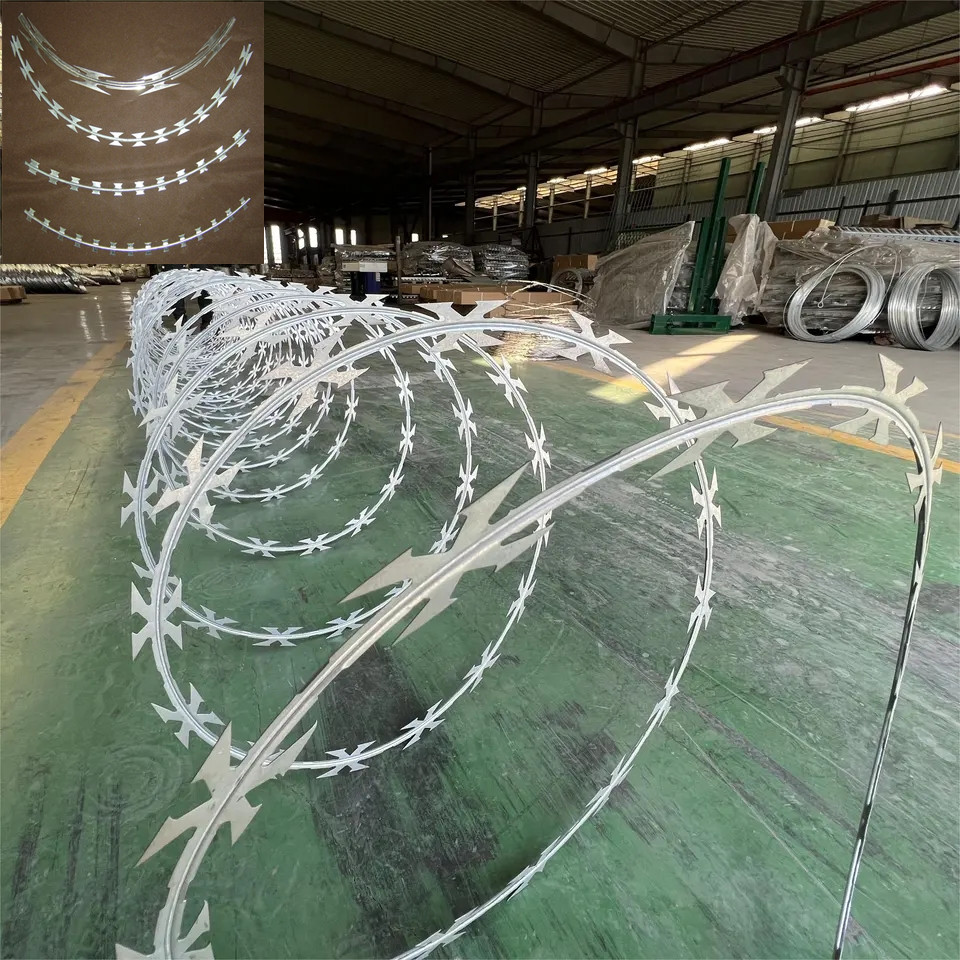

Workshop & Process

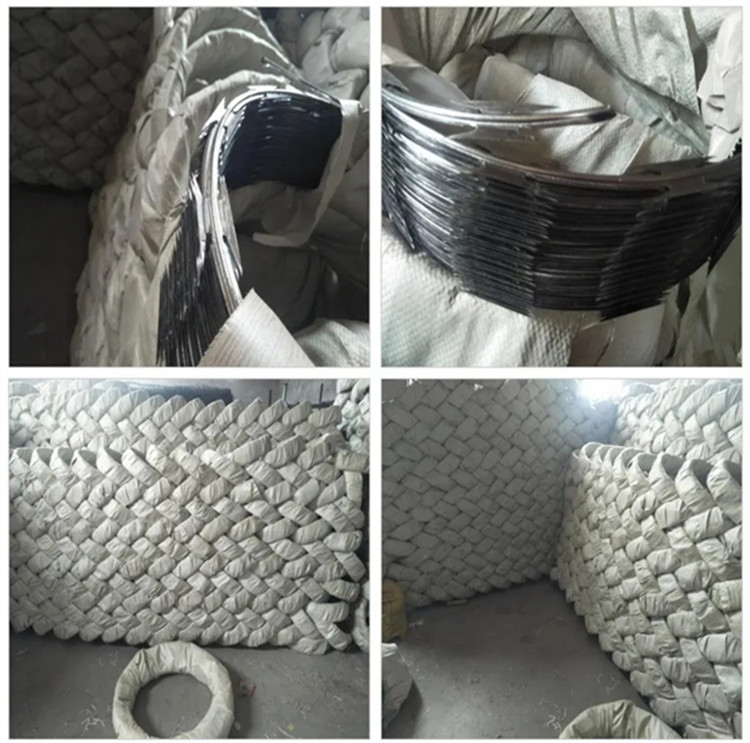

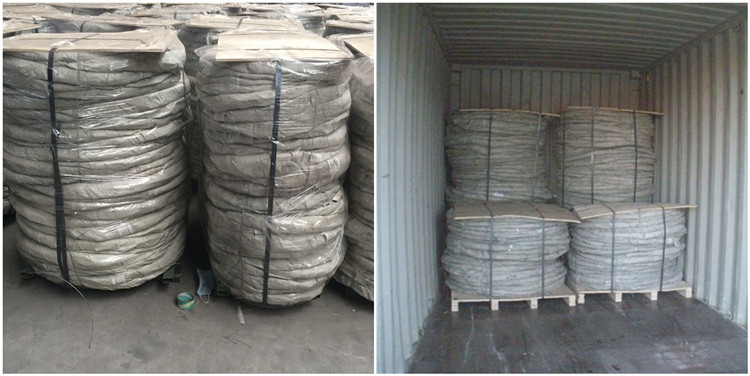

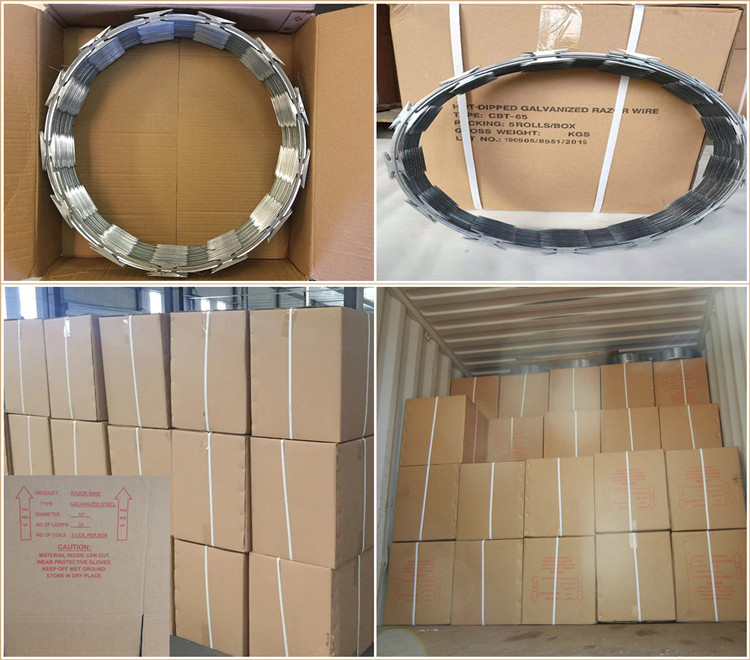

Packing & Delivery

1) Normally in rolls, wrapped with water-proof paper inside and woven bag outside.

2) 1roll, 3rolls or 5rolls in one carton packaged.

3) Packaged on pallets.

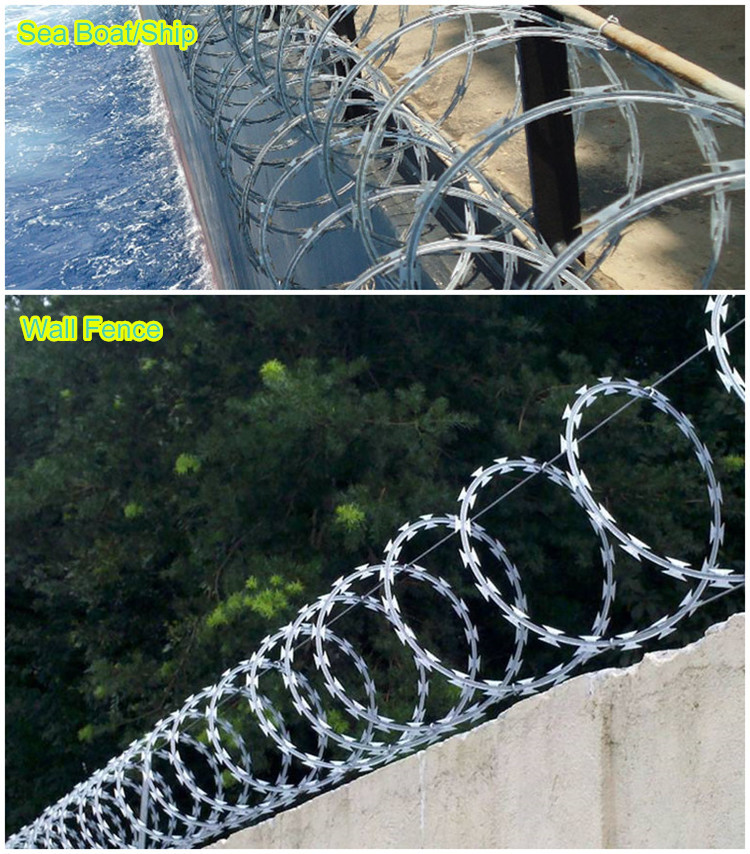

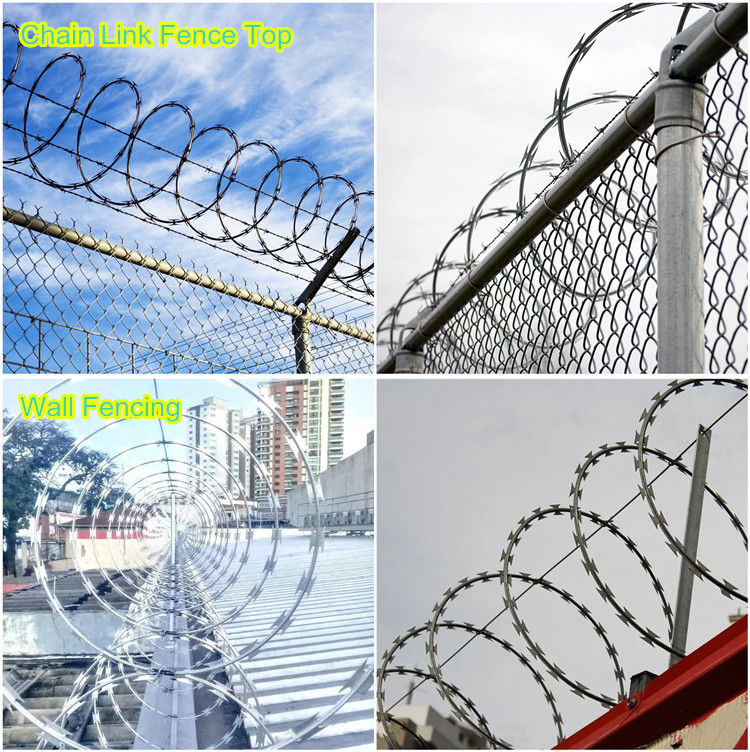

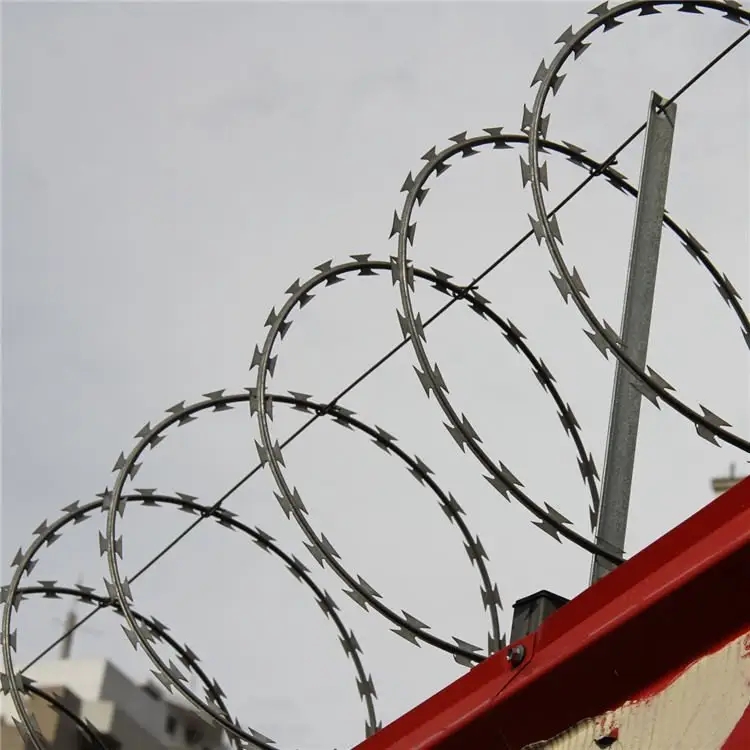

Application

Razor Barbed Tape is widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities，not only military and national security applications, but also for cottage and society fence, and other as follow:

1) Military heavy land
2) Prisons
3) Government agencies
4) Banks, Private houses
5) Residential community walls
6) Sea boat, ship, vessel

7) Villa walls, doors and windows
8) Highways, railway guardrails
9) Borders
