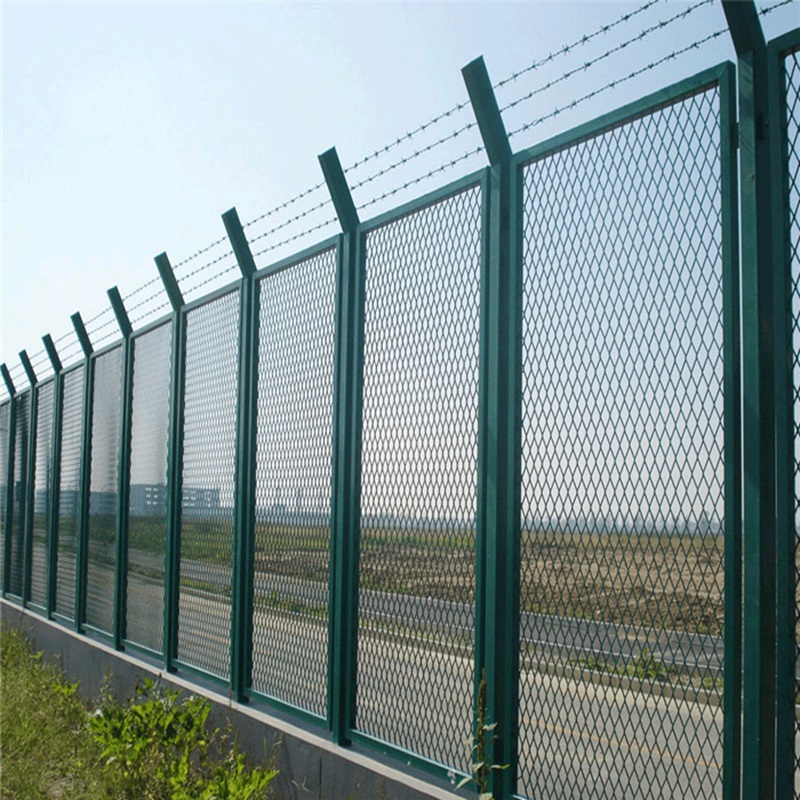

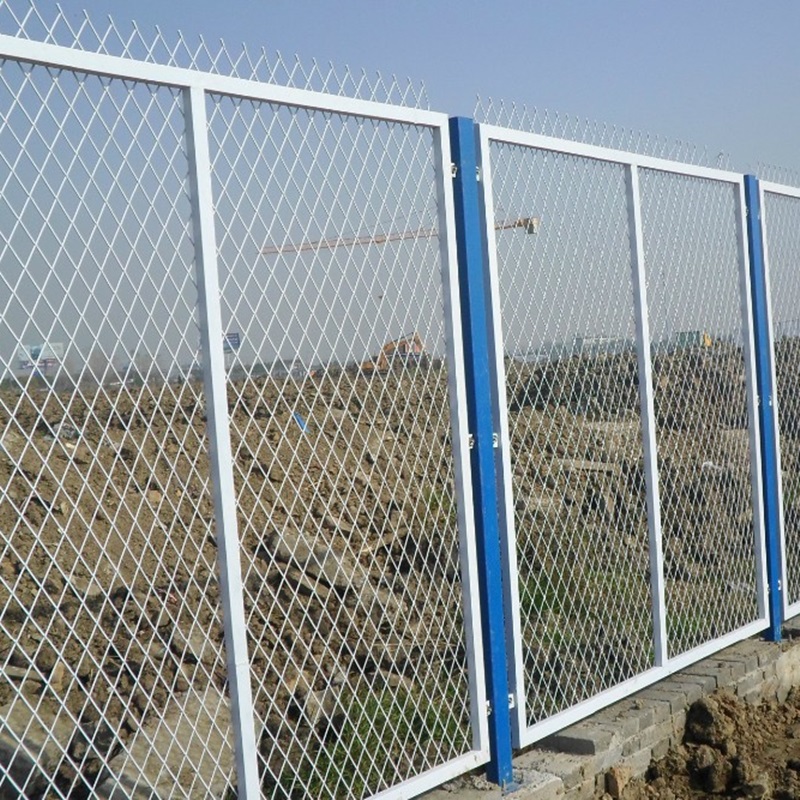

Steel Expanded Metal Mesh Fence

Material: Q195 or Q235 Size: General specifications or as customer's requirement. Surface: galvanized, PVC coated or painting. Application: road fence, Industrial platform, bridge fencing, ect. Certificate: ISO9001 Origin: China

CONTACT NOWPDF DOWNLOAD

Product Details

Product Tags

Introduction

Expanded metal mesh fence is a high-security and anti-corrosion fence, it is a rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal.

Expanded metal mesh can be made of carbon steel plate, stainless steel, galvanized steel, aluminum, copper, brass, etc .Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.

Features and benefits of expanded metal mesh fence:

The mesh is formed from a single piece of metal
The process is not wasteful of material
Higher strength-to-weight ratio than sheet metal
Anti-slip surface
Excludes and retains simultaneously
Premium reinforcement properties
Practical and effective screening
High efficient conductor
Super corrosion resistance

Specification

Product Name	Expanded metal mesh fence
Material	Low Carbon Steel, Stainless Steel, Galvanized Steel, Aluminum, Copper, Brass, Etc.
Thickness	0.5-8.0 MM
SWD	2.5-100 MM
LWD	4.5-270 MM
Strand Width	0.5-8 MM
Hole shape	Hexagonal, Gothic,diamond, Fish Scale Type Or Other Types
Lead Time	15-30 days after receiving your order
Surface treatment	PVC, Epoxy, Anodize, Galvanized Or Powder Coated

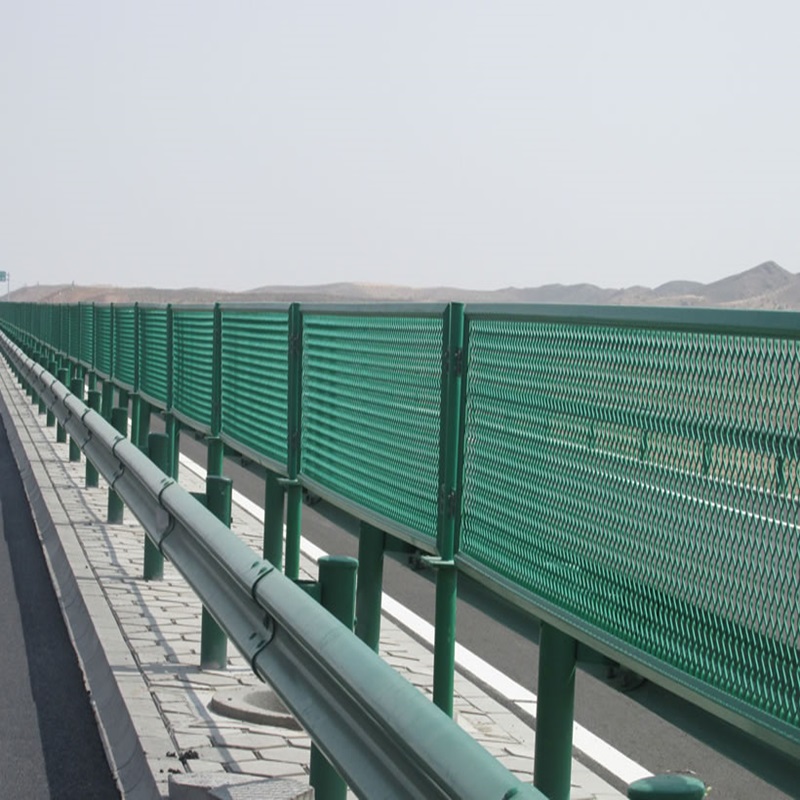

Application	It can be used in a variety of areas, such as filter, architecture and building,screen and fence, flooring and furniture, and it also can be used in many areas you can’t guess.
Package	In panels wrapped with iron pallet and waterproof plastic or wooden case. In rolls wrapped with waterproof paper or plastic bags then with wooden pallet package.

Specification of Fence post

Post type	Size	Thickness
Rectangle Hollow Pipe	20x40mm, 40x60mm, 40x80mm, 50x100mm	1.8-3.0mm
Round Steel Pipe	38mm, 48mm, 50mm, 75mm, 100mm	0.8-5mm
Square Hollow Pipe	40x40mm, 60x60mm, 80x80mm, 100x100mm	1.0-5.0mm
Peach Post	50x70mm, 70x100mm	0.8-1.5mm

We provide two types of expanded metal mesh fence

(1)Raised expanded metal mesh fence

Expanded metal as it comes from the press after being simultaneously slit and stretched having the strands and bonds form a uniform angle to the original plane of the solid sheet from which it was formed creating an open mesh diamond making one continuous panel that cannot unravel.
