3D Metal Fence Panel exported to Colombia

Jun . 16, 2023 10:22 Sanawa dolan

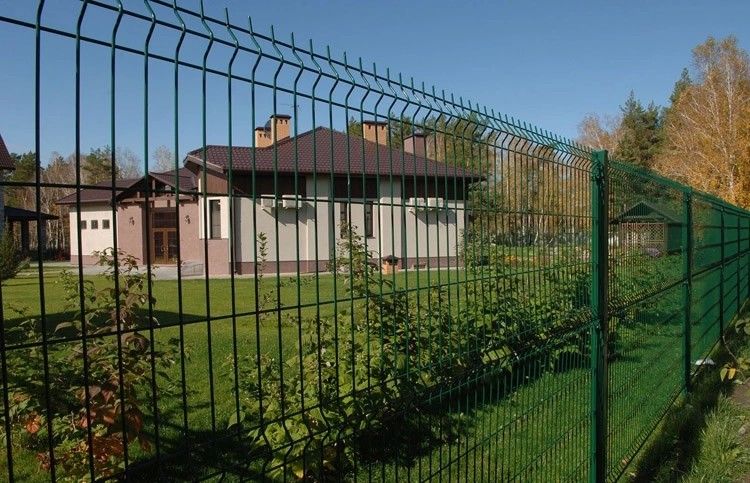

3D Metal Fence Panel exported to Colombia

3D Metal Fence Panel is one of the most popular security welded wire mesh fence . 3D mesh fence panel features pressed horizontal "V" shaped beams, in which a horizontal wire spans the entire width of the panel that could provide added strength and rigidity. As a special kind of welded wire panel, 3D welded wire fence panel is made from galvanized wires mostly, which is welded into panel, and then bent into suitable "V" curves.
For its unique form, beautiful appearance and medium level of security protection. 3D security welded mesh fence system is ideal for public buildings, industrial facilities, airports, schools, playgrounds, sports stadiums. And it still offers improved performance and long service life against theft and vandalism on account of its heavy wire, rigid welded structure, fully tightened bolt assembly, the super-durable and environmentally sound powder coating.
3D Mesh Fence Panel
3D Metal Fence Panel Specifications:
●Materials: Low carbon steel wire, galvanized wire, or other material available.
●Wire diameter: 2–6.5 mm.
●Spacing between vertical wires: 50 mm, 55 mm, 60 mm, 75 mm, 80 mm.
●Spacing between horizontal wires: 50 mm, 100 mm, 150 mm, 200 mm.
●Panel width: 1.5–4.0 m.
●Panel height: 0.6–3.0 m.
●"V" curves No.: Panels up to 0.8-1.5m heights have 2 "V" curves; 1.5-2.0 m heights have 3"V" curves; 2m-2.5 m height have 4 "V" curves.

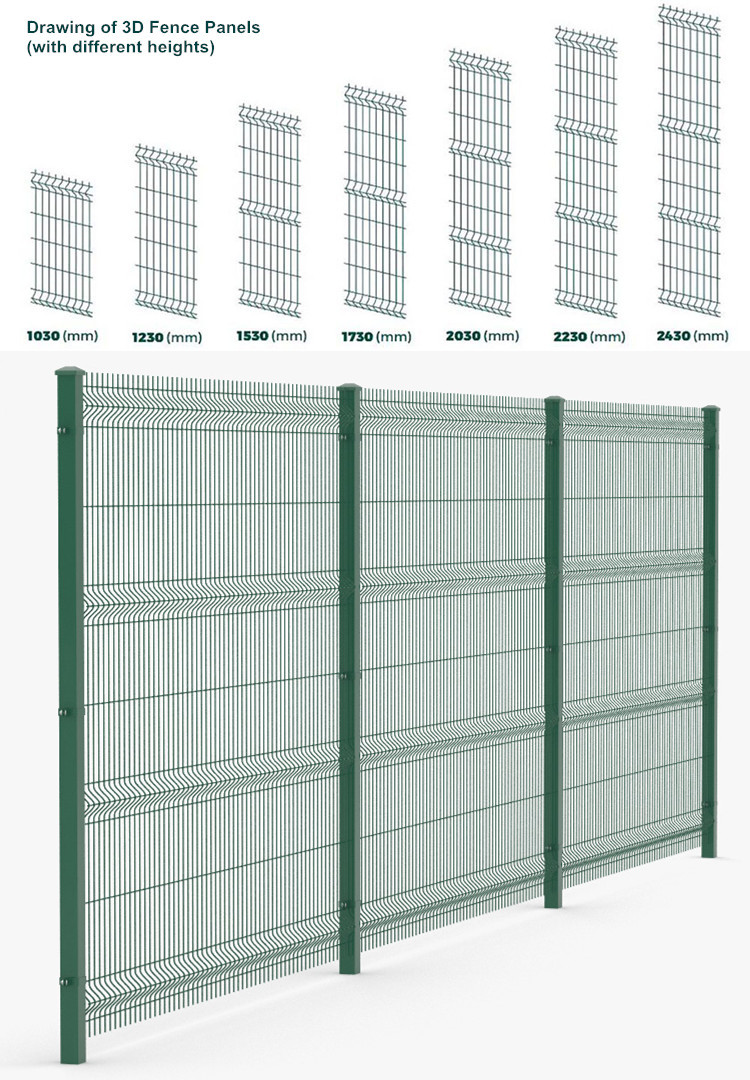

3D Fence Panel

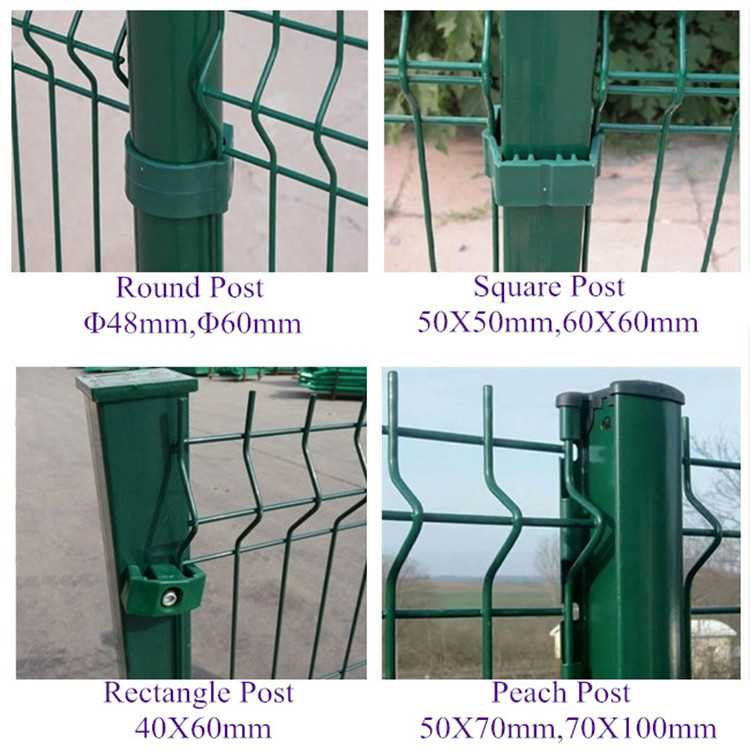

3D fence posts:
● Square/Rectangle fence post section: 50x50 mm, 60x 60 mm, 40x60mm,
● Round fence post section: 38 mm, 42 mm, 50mm, 60mm, 75mm, 100mm, ect.
● Peach fence post section: 50mmx70mm, 70mmx100mm
● Post tube Wall thickness: Normally 1.0–3.0 mm.
● Popular Surface treatment of Fence panel&Post: Hot-dip galvanized or Powder coated
● Colors: RAL 6005 green, RAL 9005 black, RAL 5010 blue, RAL 3000 red, RAL 9010 white. All RAL color is available.

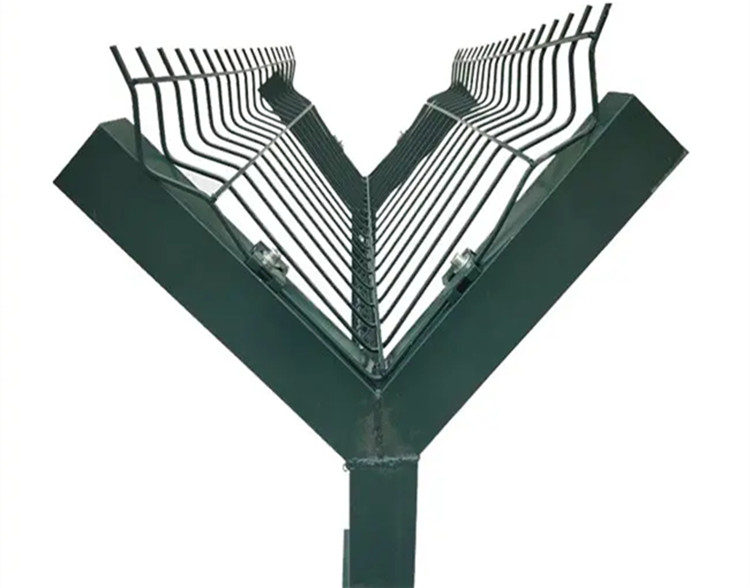

● 3D Fence Accessories: posts (With or without base flange), post Rain cap(metal caps or plastic cap), clamps/clips, bolts, nuts, post cap, single/ V- Shape Arm bracket, Tension wire, barbed wire, razor Barbed wire, etc.
3D Fence panel-fence post

3D Fence Panel Features:
● Strength and rigidity: The heavy wire spanning the entire width in the middle of the "V" shaped curves added additional strength and rigidity.
● Modern design and attractive surface: The "V" shaped bending curves made the security fence attractive.
● Robust and sturdy panels structure: The unique welded workmanship will not made the panel sag or deform easily as common chain link fence.
● Fast installation: The panel shaped fence could be jointed together easily by joints to posts and decrease the workload, so as to be efficient, furthermore it is convenient for secondary use.
● Visibility: The security fencing protect against theft and vandalism in the meantime offered surveillance ability.
● Whether resistance: The galvanized carbon steel wire and PVC coating made the fencing panel resistant to hard weather.
● A long service life: The coating is applied over the entire panel and fence accessories, therefore guarantee a long life to serve.
● Suitable for both flat and level terrain: In stepped or slopped earth, extra V-braces would be offered for sturdiness.

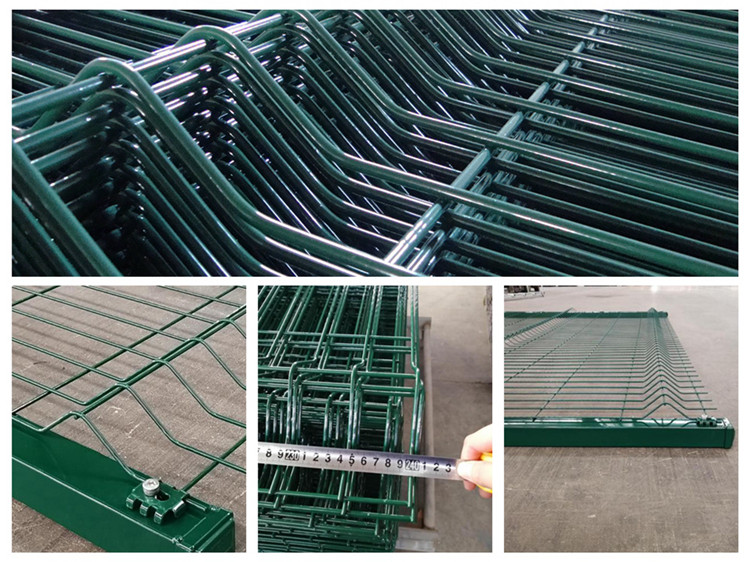

Green Powder Coated 3D Mesh Fence Panel

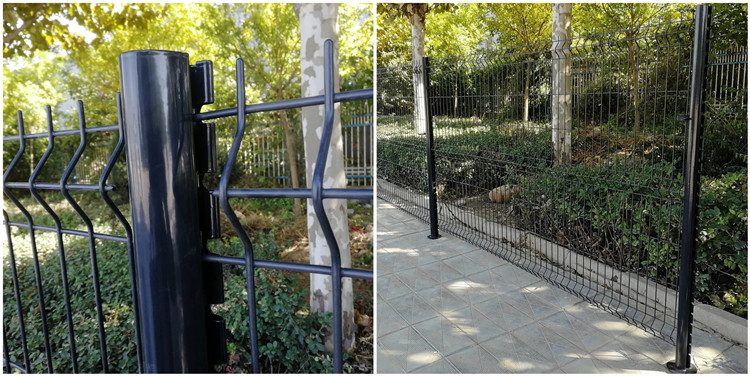

3D Fence Installation:
● Posts must be buried into earth, 0.5 m minimum to 1.2 m maximum.
● Several panels could be installed on the top of each other to achieve a higher height.
● Spacing between brackets in post would better be 0.3 m.
● A full installation guide is available upon
