Welded wire mesh panels and rolls

Material: Q195 or Q235 Size: General specifications or as customer's requirement. Surface: Electro galvanized, hot dipped galvanized, PVC coated or painting. Application: construction, fence, animals cage, gabion box, etc Certificate: ISO9001 Origin: China

CONTACT NOWPDF DOWNLOAD

Product Details

Product Tags

Introduction

The welded wire mesh offer flat and uniform surface, firm structure, good integrity. The welded wire mesh are the most excellent anti-corrosion resistance among all the steel wire mesh products, it is also the most versatile wire mesh due to its wide application in different fields. The welded wire mesh can be galvanized, PVC coated welded wire mesh.

According to the usage, the welded wire mesh can be devided into two kinds: welded wire mesh panel and welded wire mesh roll.

The surface is: black, galvanized before welding, galvanized after welding, PVC coated

Specification

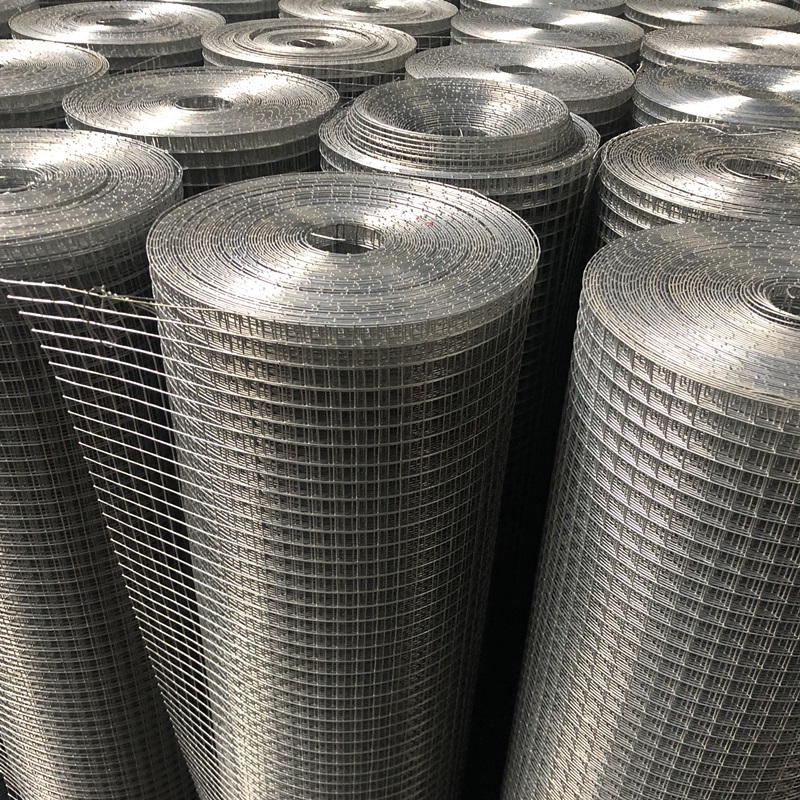

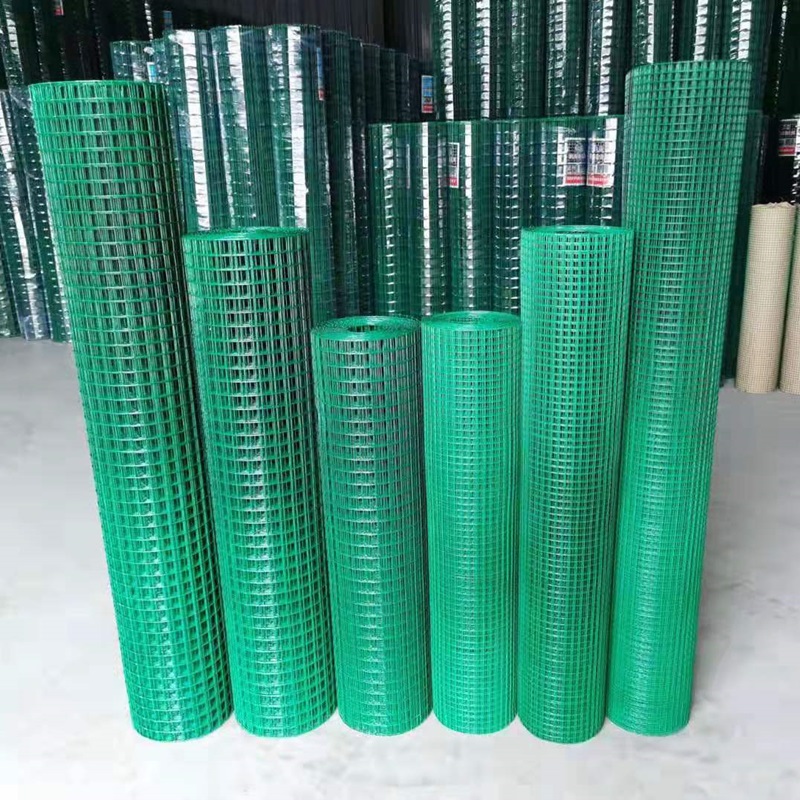

1.Welded Wire Mesh Rolls Specification

Welded wire mesh roll specification
Opening		Wire Diameter	Width 0.4-2M Length 5-50m	electric galvanized before welded, electric galvanized after welded, hot-dipped galvanized before welded, hot-dipped galvanized after welded, PVC coated, Stainless steel wire
In inch	In metric unit	Wire Diameter
1/4" x 1/4"	6.4 x 6.4mm	BWG24-22
3/8" x 3/8"	10.6x 10.6mm	BWG22-19
1/2" x 1/2"	12.7 x 12.7mm	BWG23-16
5/8" x 5/8"	16x 16mm	BWG21-18
3/4" x 3/4"	19.1 x 19.1mm	BWG21-16
1" x 1/2"	25.4x 12.7mm	BWG21-16
1-1/2" x 1-1/2"	38 x 38mm	BWG19-14
1" x 2"	25.4 x 50.8mm	BWG16-14
2" x 2"	50.8 x 50.8mm	BWG15-12
2” x 4"	50.8 x 101.6mm	BWG15-12
4” x 4"	101.6 x 101.6mm	BWG15-12
4” x 6"	101.6 x 152.4mm	BWG15-12
6” x 6"	152.4 x 152.4mm	BWG15-12
6” x 8"	152.4 x 203.2mm	BWG14-12
Note: Special specifications can be made according to customers requires.

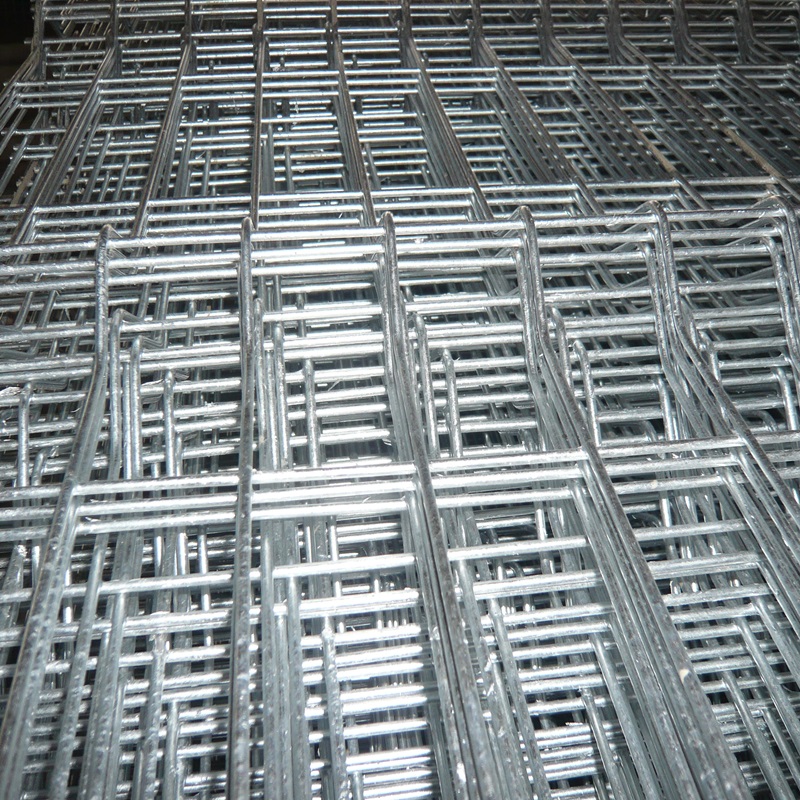

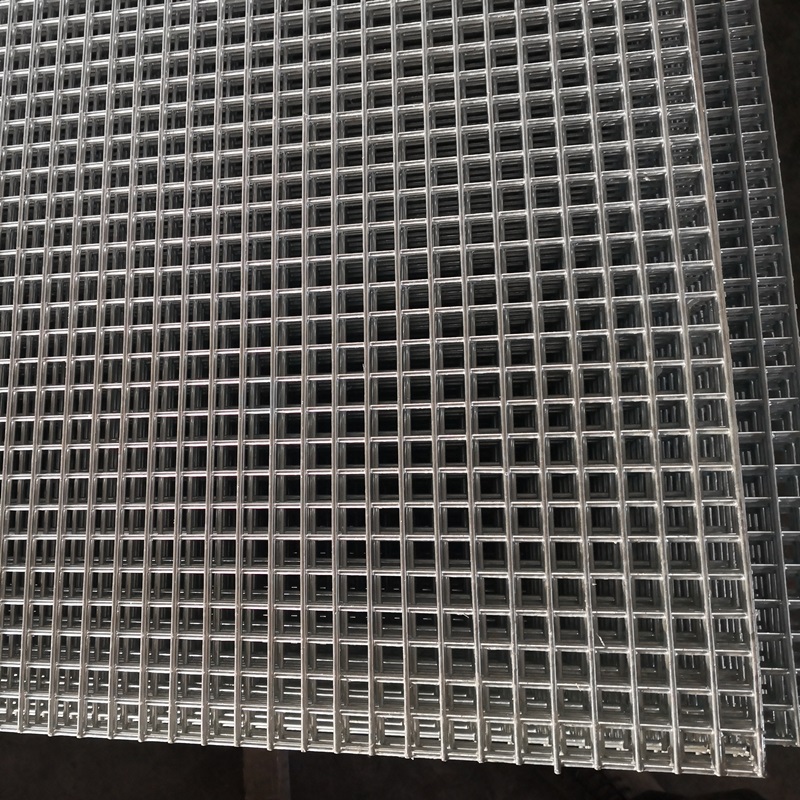

2. Welded wire mesh panels Specification

Material: black iron wire; electro galvanized wire; hot dipped galvanized wire; stainless steel wire.
Surface treatment: black, galvanized or PVCcoated, PVC color: green, yellow, white, blue.
Characteristics: Welding firm, nets hole even, the net surface smooth, corrosion resistance, strength.
Use: for construction, for making fence , for making welded gabion box.

Welded Wire Mesh Panel specification
Wire thickness	Hole size	Panel size
2.5mm 2.7mm 2.9mm 3.0mm 3.8mm 3.9mm	2“ 2525mm 4040mm 5050mm 100100mm	4ft8ft 12201440mm
Customized panel length: 0.5m-6m Customized panel width: 0.5m-2.4m Packing: 5pcs, 10pcs/bundle, with (iron) pallet

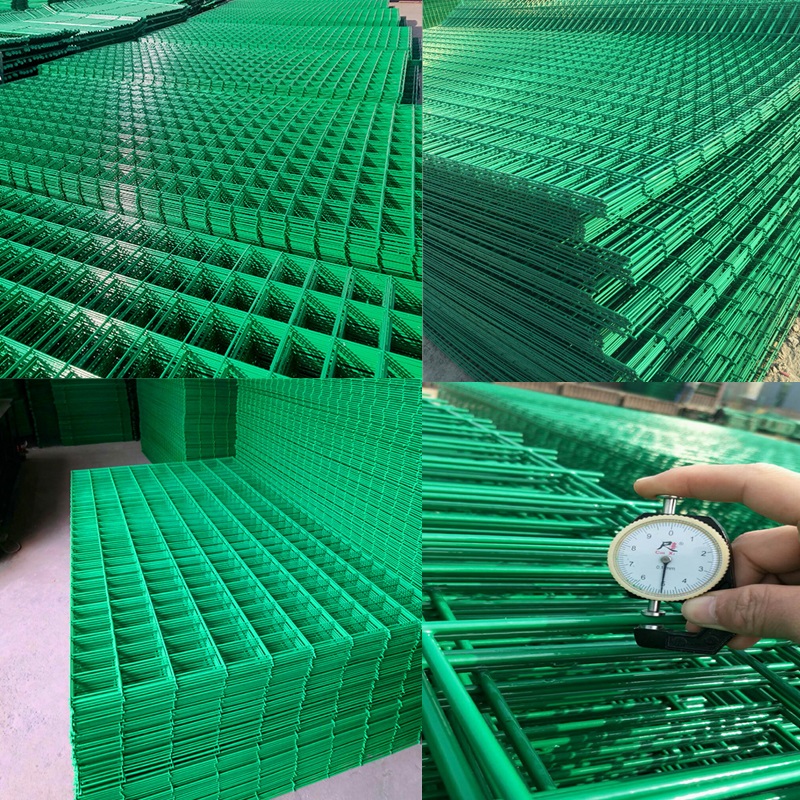

Workshop & Process

Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;

The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.

Packing & Delivery

1.Waterproof.

2.plastic film.

3.Waterproof+plastic film.

4.Waterproof+pallet.

Application

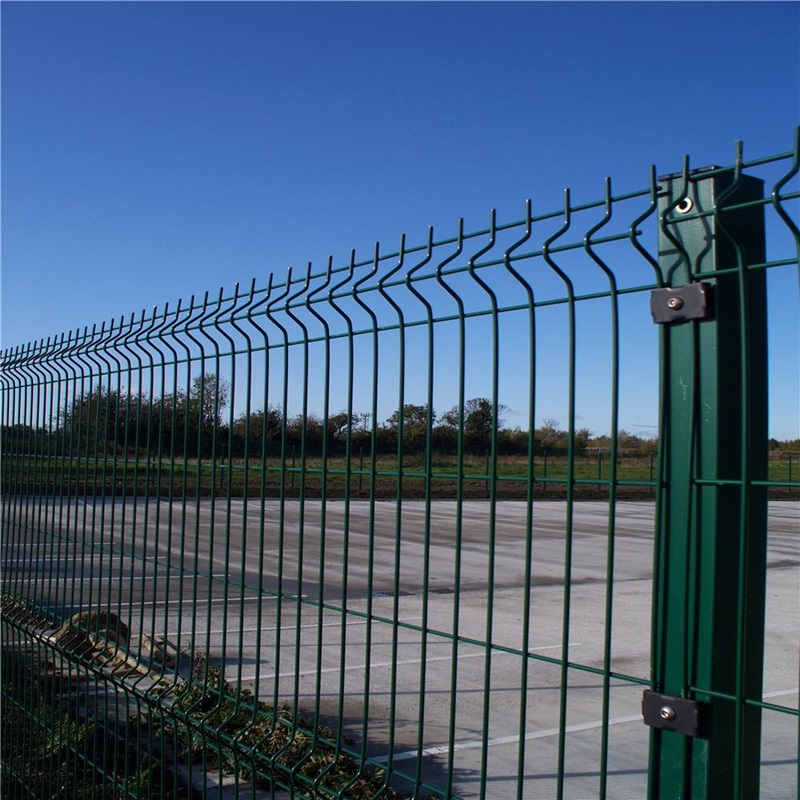

Welded wire mesh rolls can be used for animal cages, in construction walls, in warehouse shelves, in plant shelves, whereas the welded panels can be used for fence panels, welded gabion boxes.
